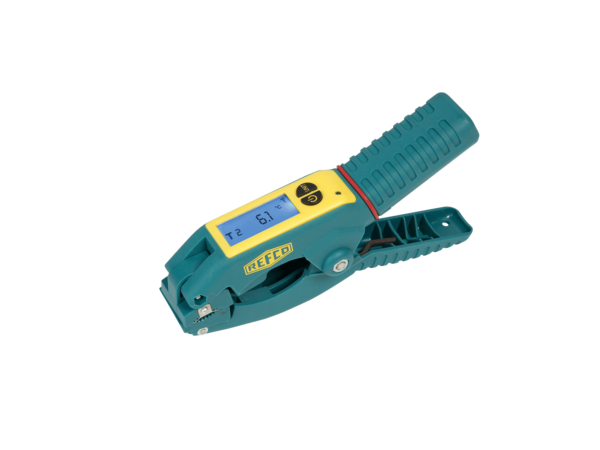

WIRELESS-CLAMP WTC

4687785
Temperature clamp for REFMATE and TAP

Temperature clamp for REFMATE and TAP

  • Measured values can be read and documented on the clamp, REFMATE and the app
  • Wireless data transmission
  • Up to 350 ft range
  • Strong springs for safe installation on pipes with 1/4" - 1 5/8" diameter
  • Ergonomic design for easy handling
  • Easy operation with two buttons
  • Technical Data
    • Temperature measuring range
      -40 - 257 °F
    • Temperature Accuracy
      +/-1 K
    • Temperature Units
      °C | °F
    • Temperature Resolution
      0.1 °C / 0.1 °F
    • Sensor type
      K-type
    • Operating Temperature Range
      32 - 122°F
    • Storage Temperature Range
      -4 - 140°F
    • Battery
      3 x AAA
    • Operating Hours
      50 h
    • Functions
      Auto off
      Unit settings,
      Calibration of WIRELESS-CLAMP WTC,
      Wireless connections
    • Signal Range
      350 ft
    • Scope of Supply
      1 WIRELESS-CLAMP WTC,
      3 Batteries,
      1 Manual
  • Logistics
    • Net Weight [kg]
      0.14
    • Net Width [mm]
      40
    • Net Height [mm]
      80
    • Net Depth [mm]
      160
    • Gross Weight [kg]
      0.3
    • Gross Width [mm]
      134
    • Gross Height [mm]
      88
    • Gross Depth [mm]
      147
    • Packing Weight [kg]
      0.17
    • Customs Tariff Number
      9026.9000
  • Documents and Media
    • Product Data Sheet
      Create Now
    • Conformity declaration
      PDF
    • Instruction manual
      PDF
    • Instruction manual
      PDF
  • Accessories

    TAP

    4687787
    Pressure Gauge
  • Spare Parts
    • TAP-MARKING-RING-SET
      Marking rings for TAP and WIRELESS-CLAMP-WTC 4x5 pcs per size, blue and red
      Item Nr. 4687793
