REFMATE-4-CA-WTC-V

4688132

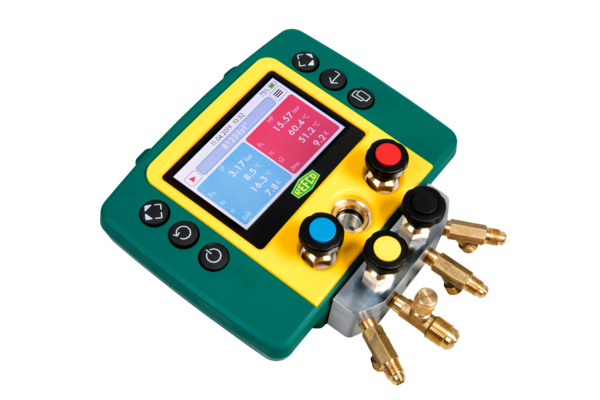

Digital 4-way manifold with 3 charging hoses with ball valves, 3/8" vacuum hose, 2 K-Type temperature sensor, 2 wireless temperature clamp and wireless digital vacuum gauge

Add to Wish List

The REFMATE is the Digital Manifold for the professional refrigeration engineer. It communicates wirelessly with temperature clamps, vacuum gauge, pressure gauges, and the scale, and documents all measured values in the device during long-term measurements. All data can be interpreted and displayed via the app REFMESH. The latest refrigerant and firmware updates can be easily installed via PC.

Patented analog display
Large 4.3" TFT display
Indication of superheating and subcooling
Intuitive control via robust push buttons
High precision with accuracy class 0.5
Flexible power supply (AA batteries or USB)
Wireless communication with REFMESH App and other devices
All mechanical components are available as spare parts
Lockable for long-term measurements

Technical Data
- Number of Ways
  4-way
- Pressure Range
  -14 - 870 psi
- Accuracy Class
  0.5 (+/-0.5 %)
- Pressure Scale
  MPa | bar | kPa | kg/cm2 | psi
- Resolution
  0.001 bar, 0.5 psi, 0.0001 MPa, 0.01 kg/cm2, 1 kPa
- Temperature measuring range
  -40 - 257 °F
- Temperature Accuracy
  +/-1 K
- Temperature Units
  °C | °F
- Temperature Resolution
  0.1 °C / 0.1 °F
- Sensor type
  K-type | Pirani Sensor | Piezo Sensor
- Refrigerant(s)
  R11 | R1234ze | R113 | R114 | R12 | R123 | R124 | R13 | R13B1 | R134a | R14 | R22 | R23 | R32 | R41 | R125 | R142b | R152A | R161 | R170 | R227ea | R236ea | R236fa | R245fa | R290 | R401A | R401B | R401C | R402A | R402B | R403B | R404A | R406A | R407A | R407B | R407C | R407D | R407F | R407H | R408A | R409A | R410A | R411A | R412A | R413A | R414B | R416A | R417A | R420A | R421A | R422A | R422B | R422C | R422D | R424A | R426A | R427A | R434A | R437A | R438A | R442A | R444A | R445A | R448A | R449A | R450A | R452A | R452B | R453A | R454A | R454B | R454C | R455A | R470A | R470B | R500 | R502 | R503 | R507 | R507A | R508A | R508B | R513A | R600 | R600a | R744 | R1270 | R1234yf | R1233zd
- Operating Temperature Range
  -4 -122 °F
- Storage Temperature Range
  -4 -140 °F
- Battery
  4 x AA | 3x3AAA
- Ingression Protection
  IP42
- Operating Hours
  50 h at low operation
- Gas Connection
  1/4" SAE | 3/8" SAE
- Functions
  Superheat / Subcool,
  Digital / analogue display,
  Slave pointer,
  Pressure zeroing,
  Data logging,
  Tube error compensation,
  Refrigerant favorites,
  Refrigerant update,
  Firmware update,
  Set pressure reference,
  Field calibration,
  Unit and language settings,
  Display brightness,
  Wireless connections to mobile and other REMESH devices,
  Commissioning date,
  Printscreens
- Signal Range
  300 ft
- Number of Hoses
  4
- Length
  60 ″
- Working Pressure
  870 psi
- Burst Pressure
  4,351 psi
- Device connection
  1/4" SAE | 3/8" SAE
- System Connection
  1/4" SAE
- Ball Valve
  Yes
- Sealing
  Neoprene
- Scope of Supply
  Wireless digital vacuum gauge | 2 wireless temperature clamps | 3 Charging hoses with CA valve | Vacuum hose | 2 wired temperature sensors | Calibration Certificate | Batteries | Instruction manual | Case
- Packaging
  Sturdy plastic case
- Material
  Aluminium | Brass | ABS | TPE
- Color
  yellow (RAL 1023) | green (RAL 6026)
- Standards
  CE / FCC / IC / RCM / RoHS / REACH
- RoHS Conformity
  Yes
Logistics
- Net Weight [kg]
  1.39
- Net Width [mm]
  195
- Net Height [mm]
  75
- Net Depth [mm]
  225
- Gross Weight [kg]
  5.28
- Gross Width [mm]
  353
- Gross Height [mm]
  107
- Gross Depth [mm]
  526
- Packing Weight [kg]
  3.89
- Customs Tariff Number
  9026.2000
Documents and Media
- Product Data Sheet
  Create Now
- Conformity declaration
  PDF
- Manufacturer declaration
  PDF
- Instruction manual
  PDF
Media
Accessories
WIRELESS-CLAMP WTC
4687785
Temperature clamp for REFMATE and TAP
Spare Parts
- Pos. 1
  M4-7-SET-B+N+R+Y
  Replacement knobs blue, black, red, yellow
  Item Nr. 4687094
- Pos. 2
  M2-10-95-R/4
  Complete valve set, 4 pieces
  Item Nr. 4687105
- Pos. 3
  M4-6-11
  Sight glass assembly with 2 gaskets
  Item Nr. 4491018
- Pos. 4
  A-31452-Y/3
  Item Nr. 4687951
- Pos. 6
  K-TYPE-SENSOR
  External temperature sensor for REFMATE and DIGIMON
  Item Nr. 4681394
- Pos. 7
  K-TYPE-CLAMP TC
  Clamp thermocouple for REFMATE and DIGIMON
  Item Nr. 4681466
- Pos.
  M4-6-04-R/4
  Valve seat assemblies, 4 pieces
  Item Nr. 4687093
- Pos.
  M4-6-04-R/10
  Valve seat assemblies, 10 pieces
  Item Nr. 4662624
- Pos.
  M4-6-11-T
  Sight glass removal tool
  Item Nr. 4493169
- Pos.
  REFMATE-HOOK
  Replacement hook
  Item Nr. 4687995
